I. technical parameters

Efficiency: 1.5-2 seconds/piece

Appearance range: min 80mm*80mm~max 155mm*115mm

Power supply: AC220V single-phase

Air Source: 0.6Mp

Machine Dimension: 2100*1900*1800 (length×width×height)

Weight: 650kgs

Control system: Siemens PLC+touch screen

II. Description:

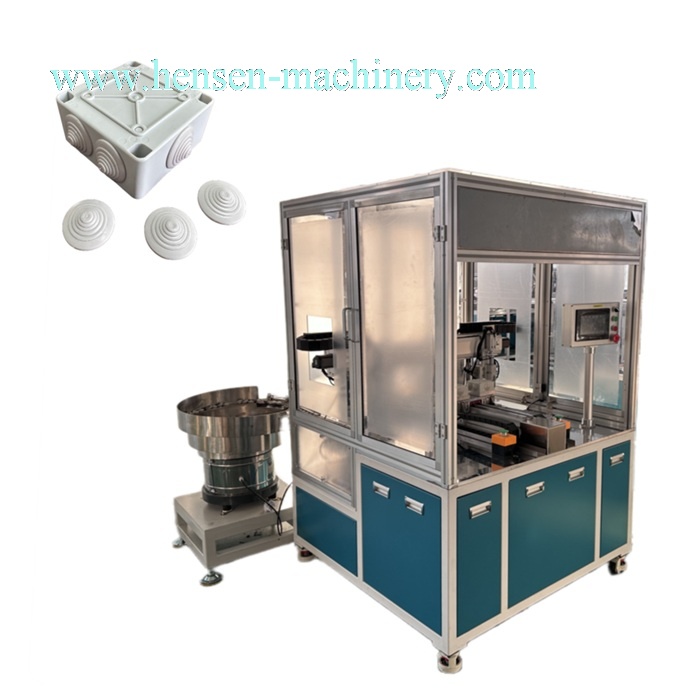

1. This machine is a plastic waterproof junction box plugs assembly machine. It is suitable for different types of plastic waterproof junction boxes such as rectangular, square, and round. It can be customized according to different products;

2. The plastic box body is manually placed into the fixture, and the plug is automatically loaded by the vibratior. One person operates one machine;

3. The equipment has the function of automatic detection of no material and lack of material;

4. This machine adopts PLC programming control system, touch screen, and stable operation.
